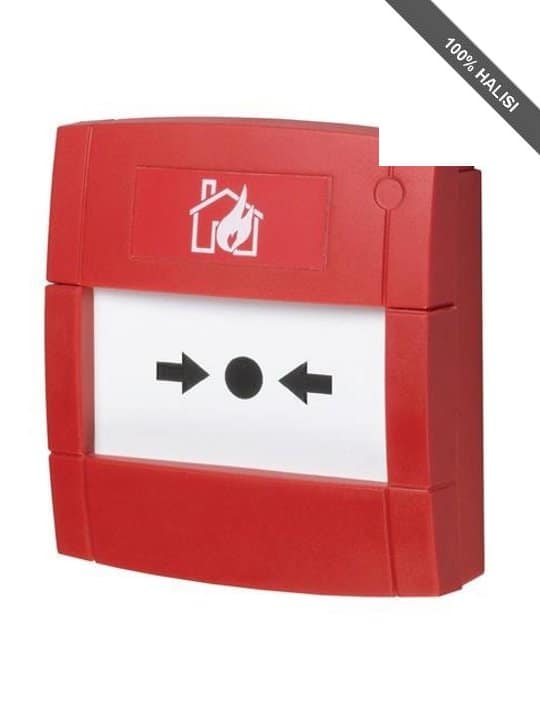

KAC Conventional Resettable Surface Indoor Call Point with 470 OHM Resistor

The M1A-R470 ranges are manual call points, both with a 470 ohm resistor and normally open contact, complete with glass. The M1A-R470FG is designed for semi-flush mounting and the MCP1A-R470SG-01 is designed for surface mounting. The call points are designed to provide a manual alarm interface to non-addressable fire alarm control panels. Both of the call points are supplied in the standard red colour. Features: • Unique ‘Plug & Play’ installation concept • Re-settable operating element option • Resistive and clean contact connections • Semi-flush or surface mounting • Fully compliant with EN54, Part 11 • Backward compatibility • Yellow version for Extinguishant Release • Conventional Call Point • Ideal For Use With Notifier NFS2-8 Panel Range • Supplied With Surface Backbox, Test Key & Glass Element Specification: • Current Rating: 2A (switching only) • Operating Voltage: 30VDC maximum • Operating temperature -10°C to 55°C • Relative humidity: 93± 3% non-condensing • Ingress Protection (IP) Rating: IP24D
