KAC Addressable Manual Call Point Warning Button

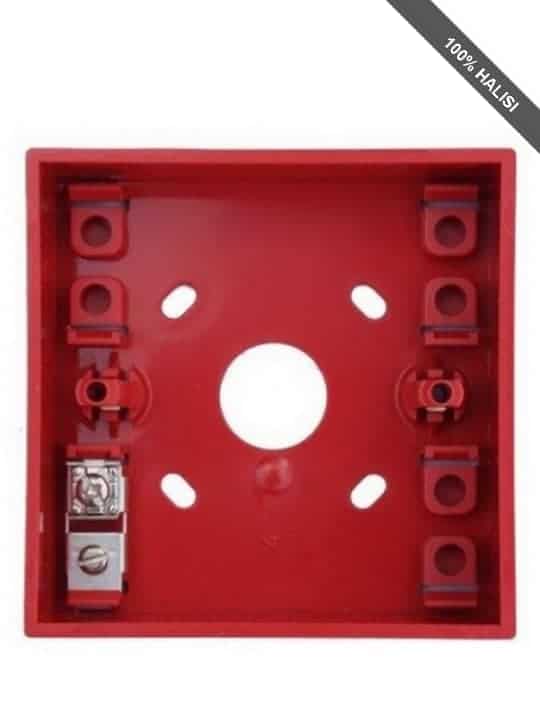

Flexible element included. Requires SR1T for surface mounting or a single gang backbox for flush mounting. Features: • Unique plug and play installation concept • Resettable, unbreakable flexible material • Analogue address communication • Built-in and surface mounting option • Integrated LED support • Conforms to EN54-11 • LPCB approved • Complete with Resettable Plastic Element & Test / Reset Key • Suitable for flush or surface mounting • Morley IAS Protocol Specifications: • Operating voltage: DC 15 ~ 32V • Passive Current: 260µA @ DC 24V • Alarm Current: 6 mA @ DC 24V • Operating temperature: -30 ° C ~ 70 ° C • Humidity: 0% ~ 95% (Non Condensing) • Protection Class: IP 24D • Max. Cable Size: 2,5 mm² • Dimensions: H: 89 mm W: 93 mm D: 27,5 mm (Built-in) – H: 89 mm W: 93 mm D: 59,5 mm (Surface Mounted) – Y: 97,5 mm W: 105 mm D: 75 , 5 mm (Surface Mounted & Transparent Cover) • Weight: 110 gr (Built-in), 160gr (Surface Mounted)
