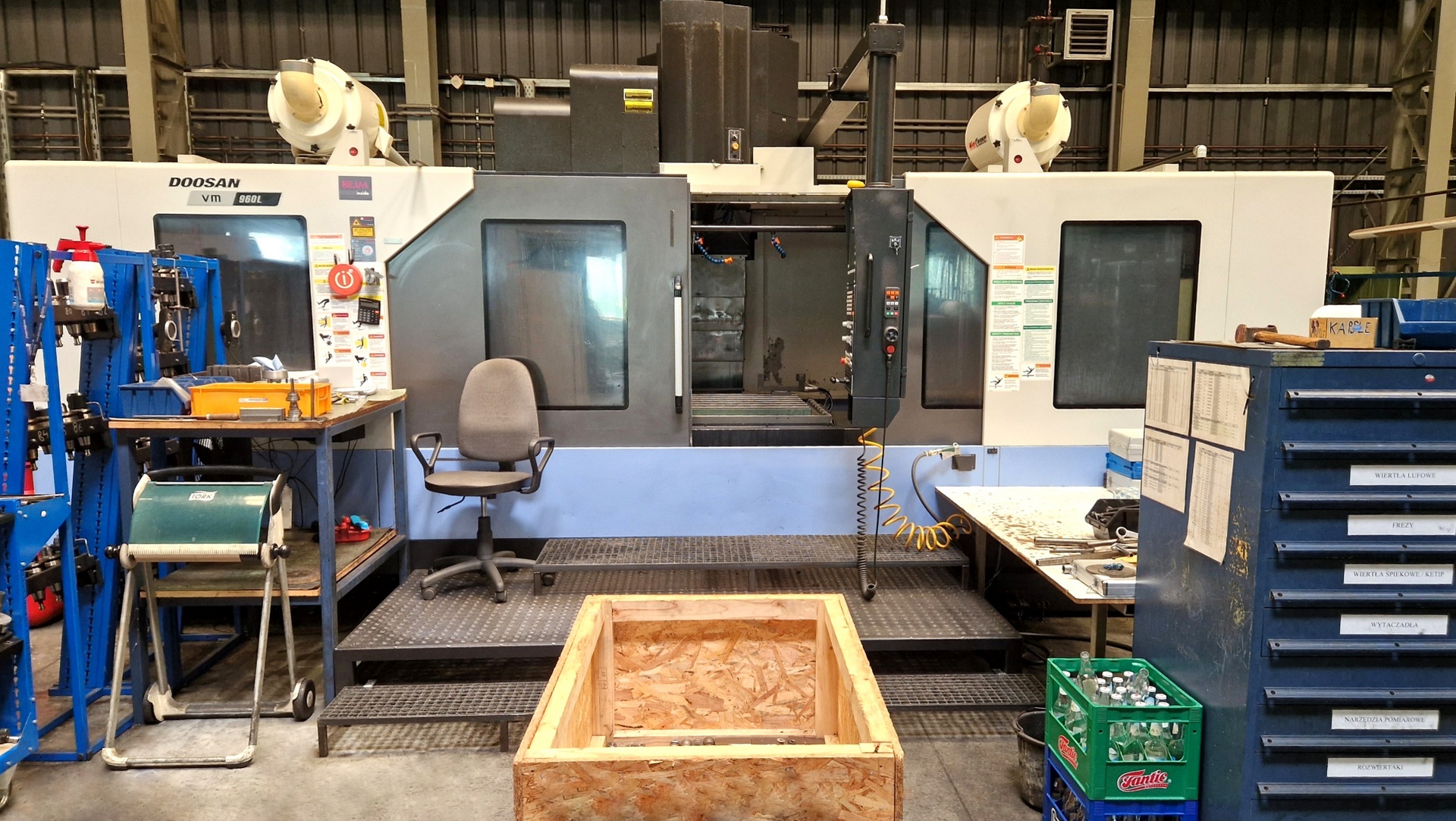

DOOSAN VM 960L CNC machining center

DOOSAN VM 960L CNC machining center was built in 2016 in South Korea by Doosan Machine Tools. The machine on offer is an excellent choice for both roughing and finishing machining of workpieces with a maximum weight of 4500 kg. It is distinguished by a number of state-of-the-art technical solutions, which, combined with extensive equipment, guarantee excellent repeatability of the manufactured parts over many years of intensive operation. All machining processes, i.e. drilling, threading and milling, are performed by means of a reliable spindle and cutting tools taken from a 40-position magazine. The very accurately balanced spindle ensures vibration-free operation at all speeds. Its taper is cleaned continuously with compressed air to protect it from chips and coolant. The entire workspace, in turn, has been fully maximised to ensure freedom of operation. The offer also includes an extensive range of equipment, consisting of, among others, a HEIDENHAIN control system, a set of measuring probes and a large amount of tooling. The VM 960L CNC vertical machining center weighs 21000 kg. Technical specifications of the DOOSAN VM 960L milling center feed in the X/Y/Z axis: 2400/960/800 mm rapid traverse in the X,Y,Z axis: 16 m/min work table dimensions (L x W): 2600 x 950 mm maximum workpiece weight: 4500 kg maximum spindle rotational speed: 12000 rpm spindle taper: ISO 50 7/24 spindle drive power (continuous power/ 30 min): 25/30 kW maximum spindle torque: 561.54 Nm maximum distance from spindle tip to work table surface: 1000 mm minimum distance from spindle tip to work table surface: 200 mm distance from spindle centre to column guides: 1005 mm tool diameter (adjacent position empty/adjacent position occupied): 230/125 mm tool length: 350 mm maximum tool weight: 15 kg tool change time (tool-tool): 3 s tool change time (chip-to-chip): 8 s toolholders: MAS403 BT 50 number of T-slots: 7 width of T-slots: 22H8 spacing of T-slots: 125 mm operating hours: 39821 h coolant tank capacity: 480 l servo motor power in the X,Y,Z axis: 7 kW coolant pump power: 0.4 kW coolant pump pressure: 1.6 MPa coolant pump output: 40 l/min hydraulic oil tank capacity: 3.1 l hydraulic system pump pressure: 1.57 MPa hydraulic system pump output: 0.1 l/min rated power: 70 kVA power supply: 3x 380 V; 50/60 Hz weight of the DOOSAN VM 960L machine: 21000 kg Equipment of the DOOSAN CNC milling machine CNC control: HEIDENHAIN TNC 640 40-position tool magazine with automatic tool changer (ATC) workpiece measuring probe: BLUM tool measuring probe: BLUM cooling through spindle 70 bar servomotors on all axes tools (vices, holders, etc.) coolant gun compressed air gun high-pressure pump: PROFLUID PF70-30DF oil cooler: NANOCON CIL 1101 oil separator oil mist extraction: YHB ECO Mist Cleaner air cooling system: EMUGE central lubrication system chip conveyor belt chip trolley electrical cabinet with cooling lamp indicating machine status
