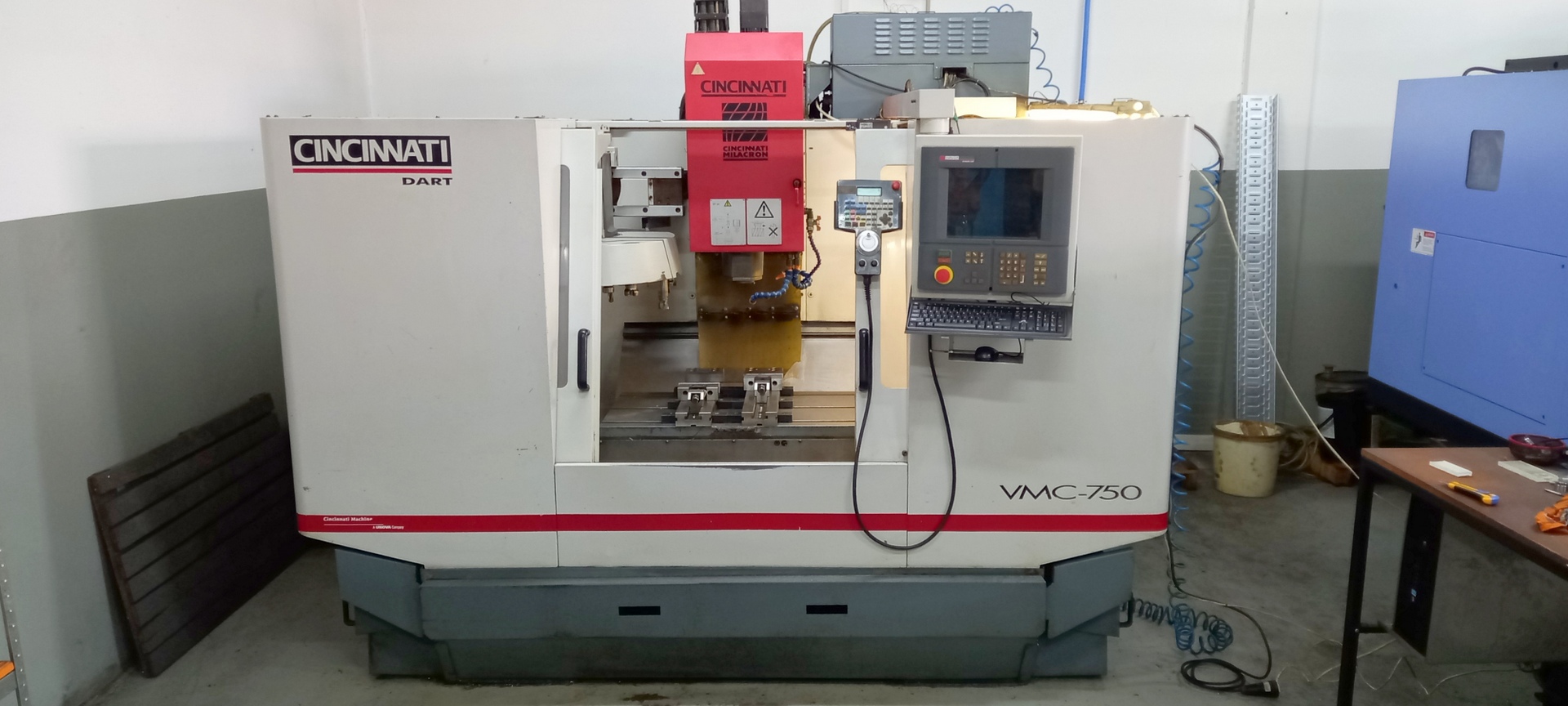

CINCINNATI MILACRON DART 750 CNC vertical machining center

CINCINNATI MILACRON DART 750 CNC vertical machining center was built in 1999 in the UK by Cincinnati Milacron U.K. Limited. The machine, designed for machining workpieces with a maximum weight of 455 kg, is distinguished by its outstanding precision, efficiency and reliability. The machining process is performed on a large work table with a length of 950 mm and a width of 520 mm, by means of a high-speed spindle and cutting tools taken from a 21-position magazine. High process stability, even during the most intensive challenges, is in turn ensured by an extremely rigid design made of top-quality steel. All this is completed by a CNC controller with dialogue programming. The CINCINNATI MILACRON DART 750 CNC machining center weighs approximately 3500 kg. Technical specifications of the CINCINNATI MILACRON DART 750 CNC milling machine CNC controller: ACRAMATIC 2100 number of axes: 4 feed in the X/Y/Z axis: 750/510/510 mm rapid traverse in the X,Y,Z axis: 16 m/min work table dimensions (L x W): 950 x 520 mm maximum workpiece weight: 455 kg maximum spindle rotational speed: 6000 rpm spindle taper: ISO 40 21-position tool magazine tool change time: 8 s number of T-slots: 3 portable control unit (pendant) weight of the CINCINNATI DART VMC-750 machine: approx. 3500 kg
