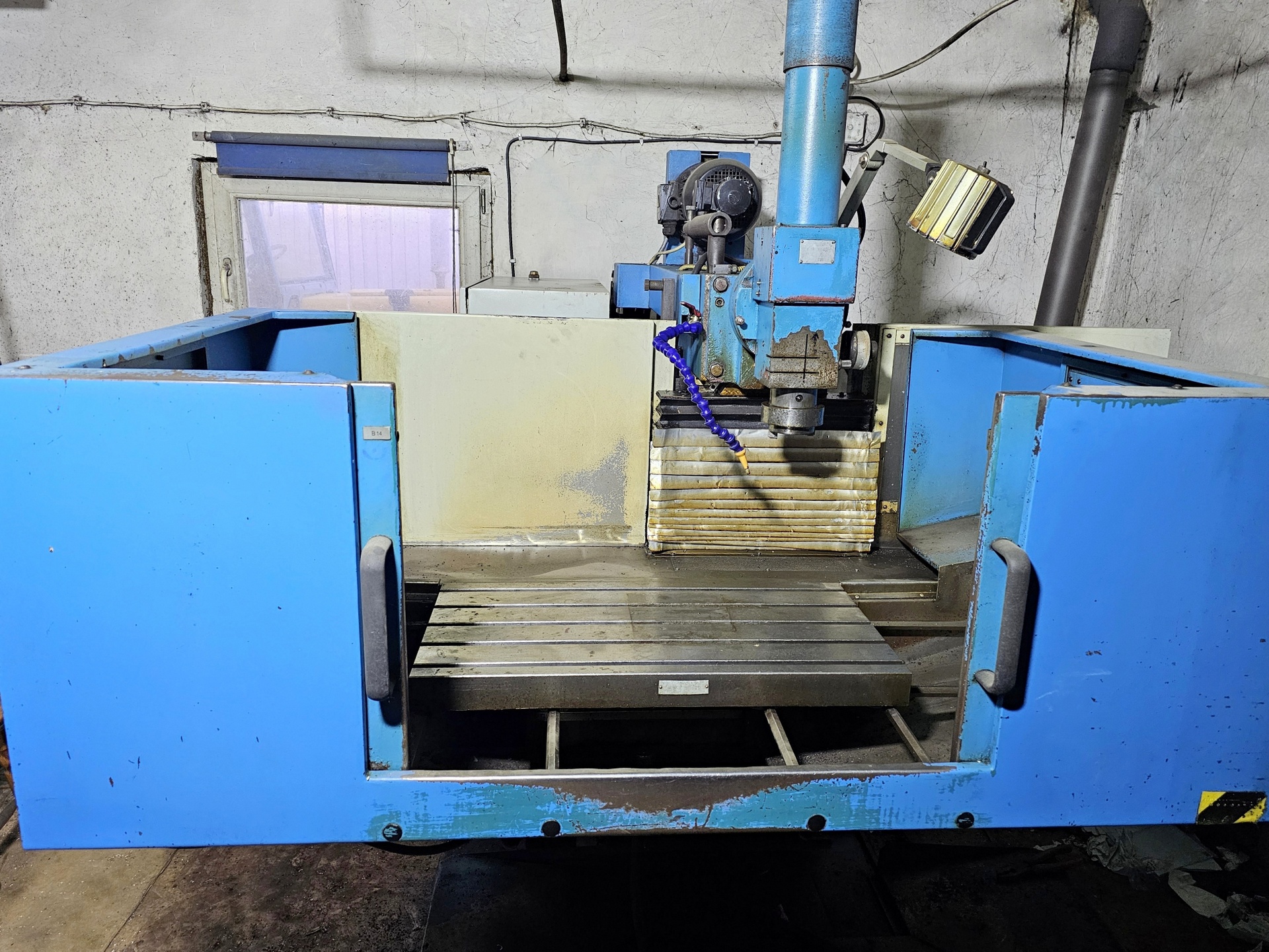

AVIA FNE 40NC milling machine

AVIA FNE 40NC milling machine was built in 2001 in Poland by Fabryka Obrabiarek Precyzyjnych AVIA S.A. The machine is used for precision machining of workpieces with a maximum weight of 400 kg. The machining process is performed in three axes by means of a reliable spindle with stepless speed adjustment. The spindle, mounted on a swivel workhead, moves in the Z axis on precision vertical guides. All this is complemented by the easy-to-use HEIDENHAIN NC control system, in which even the most advanced programmes can be created in just a few steps. The AVIA FNE toolroom milling machine weighs 1900 kg. Technical data of the AVIA FNE 40NC metal milling machine NC controller: HEIDENHAIN TNC 310 feed in the X/Y/Z axis: 620/420/400 mm rapid traverse in the X/Y/Z axis: 6000/4000/4000 mm/min feed rate adjustment: stepless maximum workpiece weight: 400 kg horizontal work table surface area (L x W): 800 x 400 mm vertical work table surface area (L x W): 450 x 300 mm spindle rotational speed range: 100-4000 rpm number of spindle speed adjustment stages: 2 spindle speed adjustment: stepless spindle taper: ISO 40 spindle drive power: 6 kW vertical head turning angle: ± 45° vertical head quill extension (manual): 80 mm tool clamping force: 10000 N bore diameter in support: 56H7 mm T-slot number (horizontal work table): 5 T-slot number (vertical work table): 3 T-slot width (horizontal work table): 14 mm T-slot width (vertical work table): 14 mm T-slot spacing (horizontal work table): 80 mm T-slot spacing (vertical work table): 80 mm axis drive power: 7 kW hydraulic motor power supply unit power: 0,55 kW cooling system electropump power: 0,2 kW power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 2194 x 2350 x 1966 mm weight of the AVIA FNE 40NC milling machine: 1900 kg (The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
